The "freshness preservation ability" of food packaging bags is essentially determined by two factors: barrier (blocking oxygen/moisture/odors) and sealing (leak-proof, non-fraying, and contamination-resistant sealing). Many cases of "bulging bags, leaks, and rework" are not due to insufficient material cost, but rather to a mismatch between the structure and the heat sealing window, or the selection of incorrect testing methods.

 Structure Selection Recommendations: First determine the functional layers (barrier/oil resistance/temperature resistance), then determine the appearance layers (printing/feel).

I. First, distinguish: Barrier Indicators vs. Sealing Indicators

    Barrier Layer: Focus on Oxygen Transmission Rate (OTR) and Water Vapor Transmission Rate (WVTR) to determine the risks of oxidation, moisture absorption, and aroma loss.

   Sealing Layer: Focus on heat seal strength, heat seal window (the temperature/pressure/time range for stable production), and resistance to contamination (whether it can still seal firmly in the presence of powder/oil stains).

A common engineering misconception is focusing only on the barrier layer (such as aluminum foil/metallized plating) while neglecting the formulation and process window of the inner heat seal layer; resulting in materials that are "strong," but the seal is "brittle."

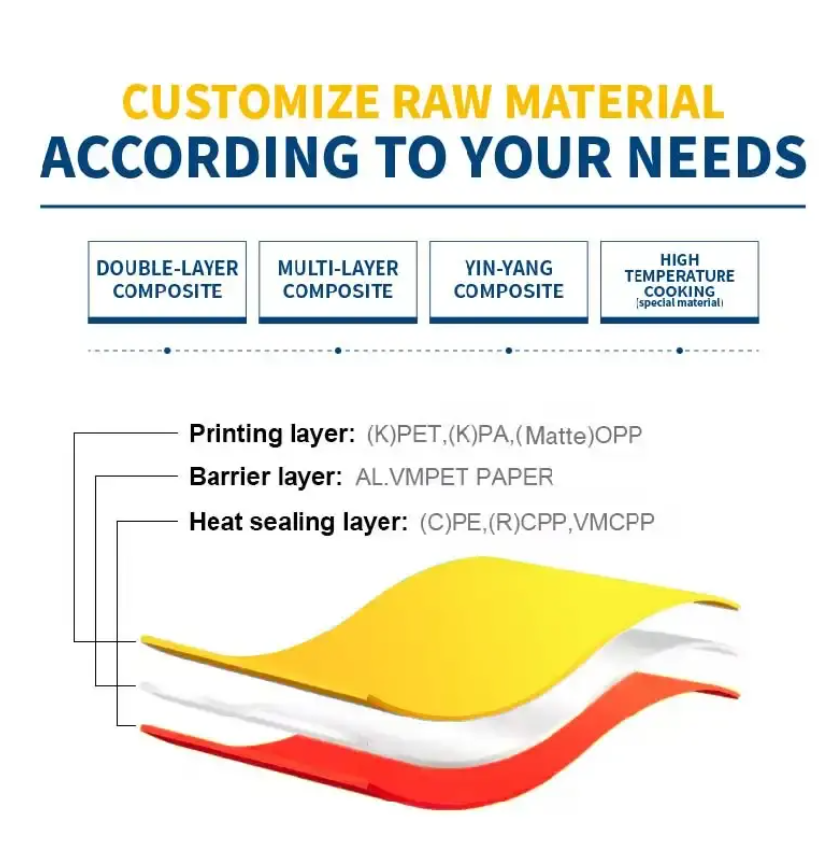

II. The core logic of structural design: Define the functional layers first, then the appearance layers. Thinking of packaging bags in three layers makes them less prone to errors:

Outer layer (display/printing layer): PET/BOPP, etc., responsible for stiffness, print stability, and abrasion resistance.

Middle layer (barrier/reinforcing layer): AL foil, VMPET, PA/NY, EVOH, etc., responsible for barrier and puncture resistance.

Inner layer (heat-sealing/contact layer): PE/CPP/RCPP, etc., responsible for heat sealing, oil resistance, and safety in contact with contents.

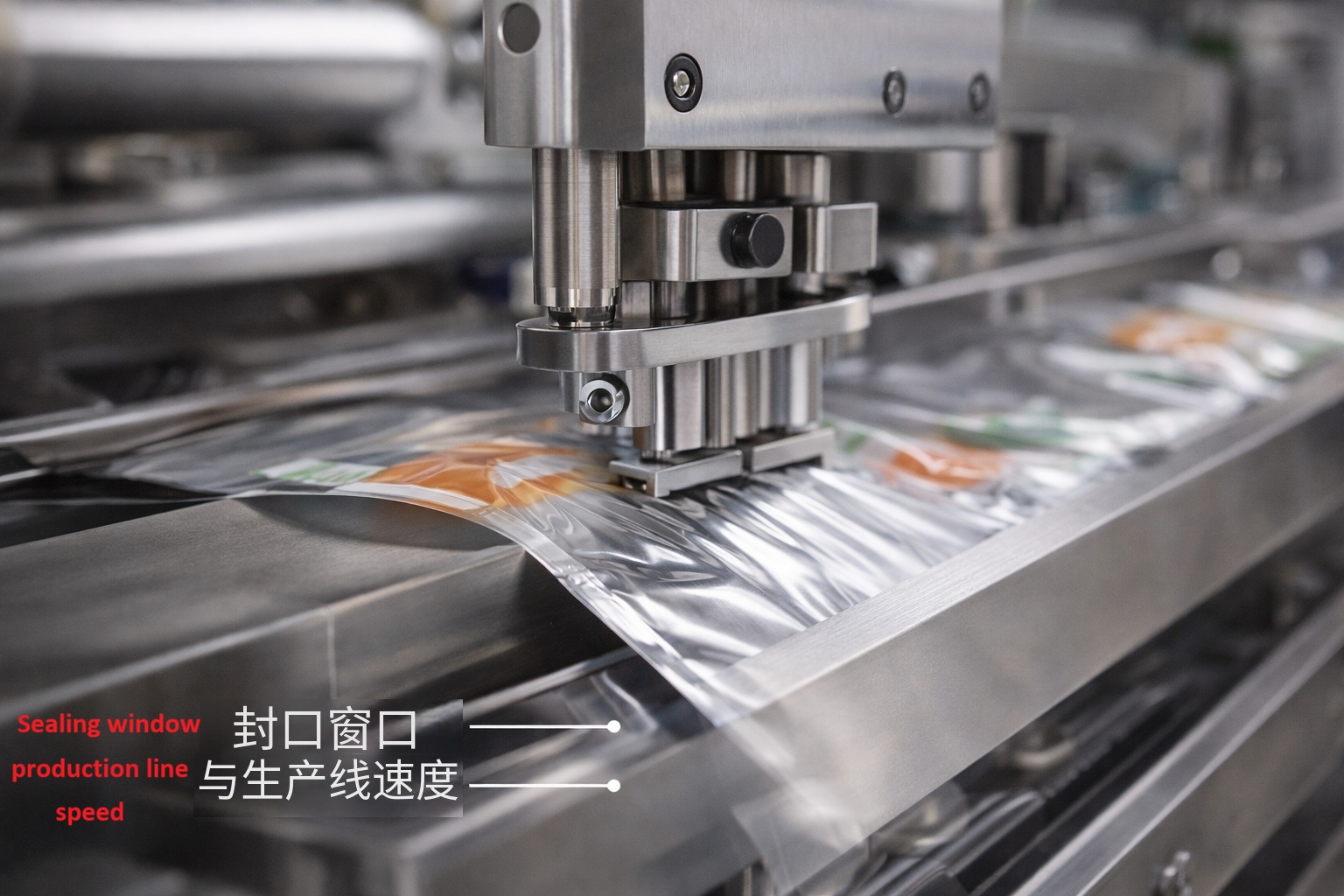

                     The sealing stability of an automated packaging line depends on whether the heat-sealing window and the cooling cycle are matched.

The table below provides a quick comparison of "Common Scenarios - Structure - Key Verification Items," suitable for selection communication:

Food Scenarios	Recommended Structure Examples (Illustrative Only)	Key Risk Points	Recommended Testing
Dry Goods/Powders (Moisture-proof)	PET/VMPET/PE or PET/AL/PE	Powder trapped in the seal, causing incomplete sealing and air leakage	Anti-contamination sealing, airtightness (air leakage)
Nuts/Oil Products (Anti-oxidation + Oil Resistance)	Nuts/Oil Products (Anti-oxidation + Oil Resistance)	Oil seepage, delamination, brittle seal	Oil resistance, peel strength, heat seal strength
Frozen Foods (Low-Temperature Toughness)	PA/PE or PET/PE (Low-Temperature System)	Low-Temperature brittleness, drop damage	Low-Temperature drop resistance, puncture resistance, sealing impact
Reheating/High Temperature (Heat Resistance)	PET/PA/RCPP (or similar heat-resistant structure)	Delamination after reheating, odor, seal failure	Resistant to reheating appearance/odor, seal strength

III. Heat Sealing Process Window: From "Able to Seal" to "Able to Achieve Stable Mass Production"

Higher sealing strength isn't always better; a balance must be struck between "easy to tear/no air leakage/no machine jamming." Factories are advised to manage heat sealing parameters as a window:

Temperature: Too low → incomplete fusion; Too high → material degradation/embrittlement/wrinkling/odor.

Pressure: Insufficient → weak seal; Too high → damage to the heat seal layer, thinning of the seal edge.

Time: Too short → insufficient strength; Too long → heat damage, decreased efficiency.

Cooling and Cycle Time: On high-speed packaging lines, "stressing before complete cooling" makes edge bursting/damage more likely.

If your product experiences edge bursting or seal damage on an automated packaging line, it's often not due to "material defects," but rather a mismatch between "thermal adhesion (heat bond strength) and cycle time." It's recommended to clearly specify the target line speed, whether the seal will trap powder/oil, and the packaging machine model during the sampling stage to avoid repeated structural modifications later.

IV. Common Failure Modes and Quick Troubleshooting

Air Leakage/Bag Swelling: First check for powder trapping at the seal, wrinkles at the sealing edge, and whether the inner heat-sealing material matches the contents (grease/alcohol/high temperature).

Edge Bursting/Bag Tear: Check for "stressing without cooling," whether the sealing edge design is too narrow, and whether the material thickness and PA reinforcement layer are necessary.

Delamination/Blistering: Check for composite peel strength, curing time, solvent residue, and compatibility with the adhesive system.

Odor: Check for solvent residue, ink/adhesive system, and odors caused by overheating and carbonization.

V. Pre-Mass Production Testing Checklist: Replace "Experience-Based Decisions" with "Small-Scale Tests"

It is recommended to conduct at least one round of "small-scale tests" to mitigate risks during the prototyping stage:

Sealing Strength (Comparison curves at different temperatures/time points)
Sealing/Leakage Tests (Vacuuming/Water Testing/Pressure Decay, etc.)
Drop/Impact Tests (Especially for Frozen/Heavy Packaging)
Oil/Temperature Resistance Retests (Grease, Retorting, Hot Filling)

      Sealing tests are recommended to be completed during the prototyping stage: identify problems first, then work backward to determine structural and process parameters.
